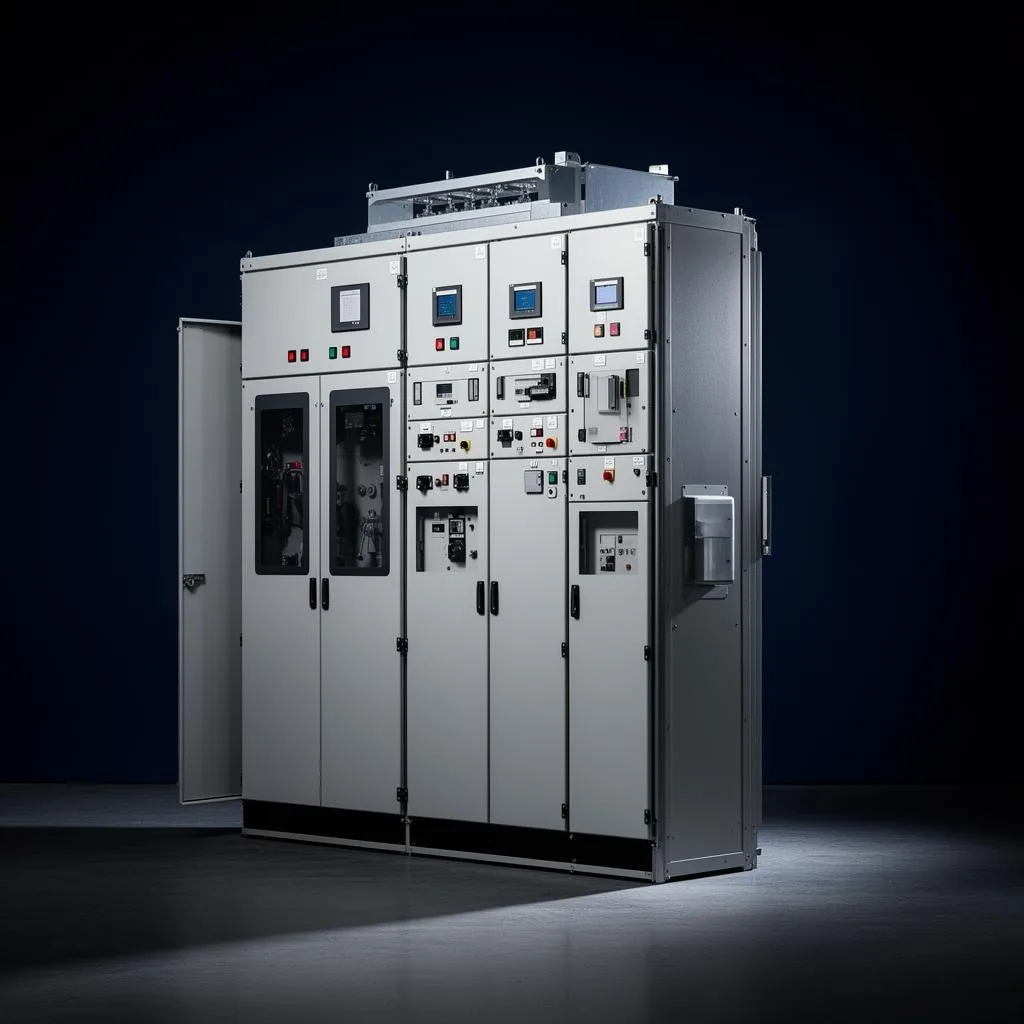

HS Switchgear manufactures a range of high-quality IEC Standard 12kV indoor distribution MV switchgear for secondary substation applications in their facility based in the U.A.E. Our Eclipse range has standard ratings 630, 1250 and 2000 amps, they are designed utilising highly efficient magnetic actuator vacuum circuit breakers to ensure low operational costs.

The switchgear technology is designed by Hawker Siddley Switchgear, a world-famous UK company with a reputation for quality in design and manufacturing. Our manufacturing principles and processes exceed internationally recognised standards to ensure that only highly reliable and resilient electrical equipment is connected to critical distribution networks.

A robust design utilises a fixed pattern concept removing the need to withdraw the circuit breaker for isolation or test, the circuit breaker technology is based on an air-insulated vacuum and magnetic operation with no requirement for SF6 gases and their associated maintenance costs. Fixed pattern designs offer a reduced overall footprint, annual maintenance, and lifetime cost of ownership; the ease of operation delivers higher levels of operator and system safety.

The Eclipse delivers a high quality and reliable solution from an easy-to-use control system that has an existing global installed base of many thousands.

Offering high operational performance and reliability properties from multiple patented designs:

  • Single Coil Magnetic Actuator Mechanism
  • Reduces the overall number of components – static & moving
  • Electromagnetic Spring
  • Low contact pressures
  • Reduced closing operation energy requirement

The modular design and construction use plastic mould and metal cast parts to reduce the overall component part count which facilitates a minimal maintenance regime.

Ratings: 630, 1250, 2000 Amp l Primary Voltage:  ≤12kV voltage l Frequency: 50Hz
Enclosure: IP4X l Disconnector: three-position l Monitoring: electronic control l Cable Access: top/bottom

IEC 62271-200, IEC 62271-100, IEC 62271-102, IEC 62271-1
ENA (Electricity Networks Association) TS41-36, TS 50-18

Product Specification:

General Transformer Range

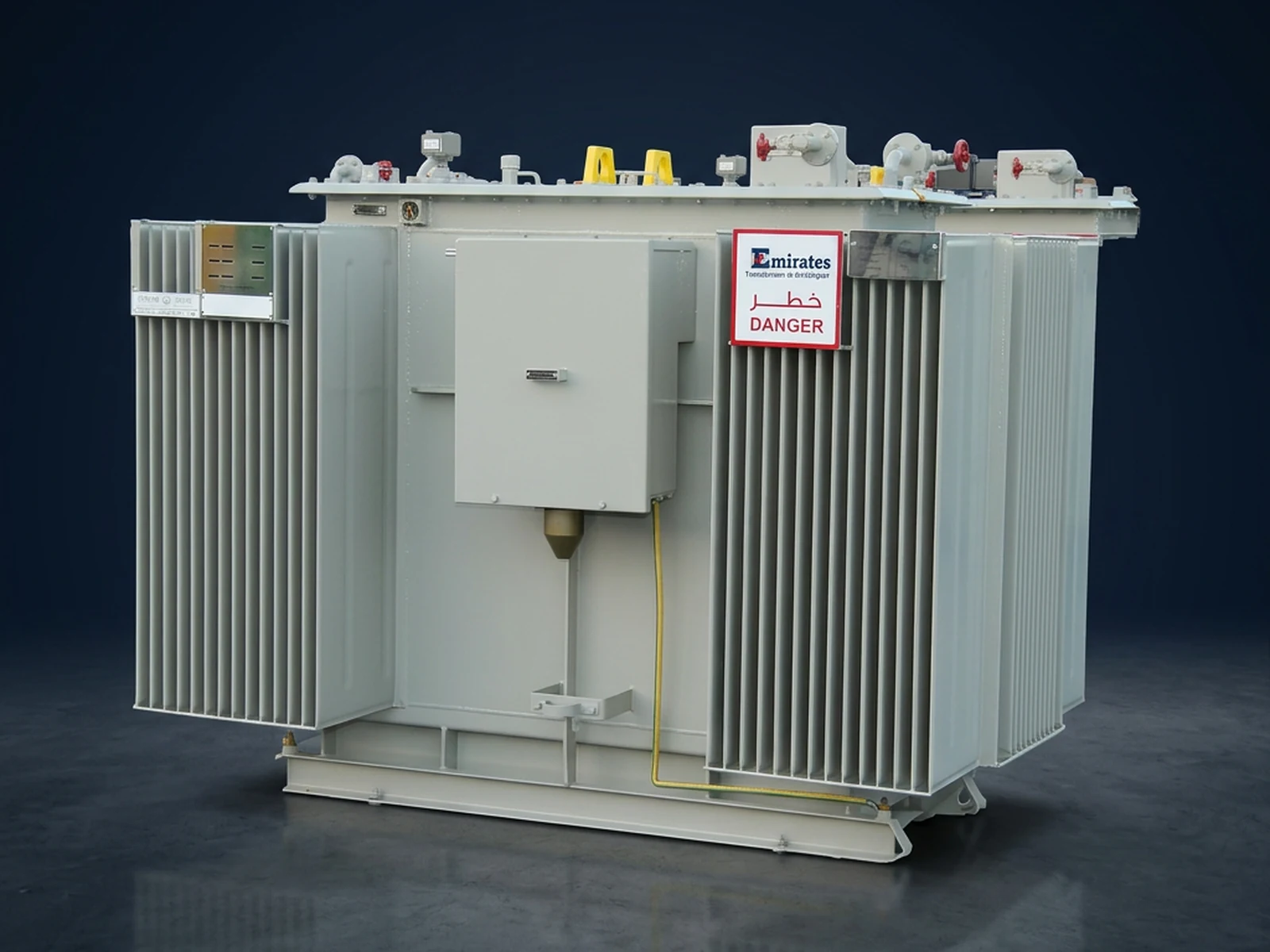

Distribution Liquid l Distribution Cast Resin l Medium Power l Power l Earthing l Rectifier l Motor Start l Phase Shift l Generator l Voltage Regulating l Auto l Multi-Tap ESP l Reactors l Solar l Wind Turbine l Furnace l Dual Ratio
