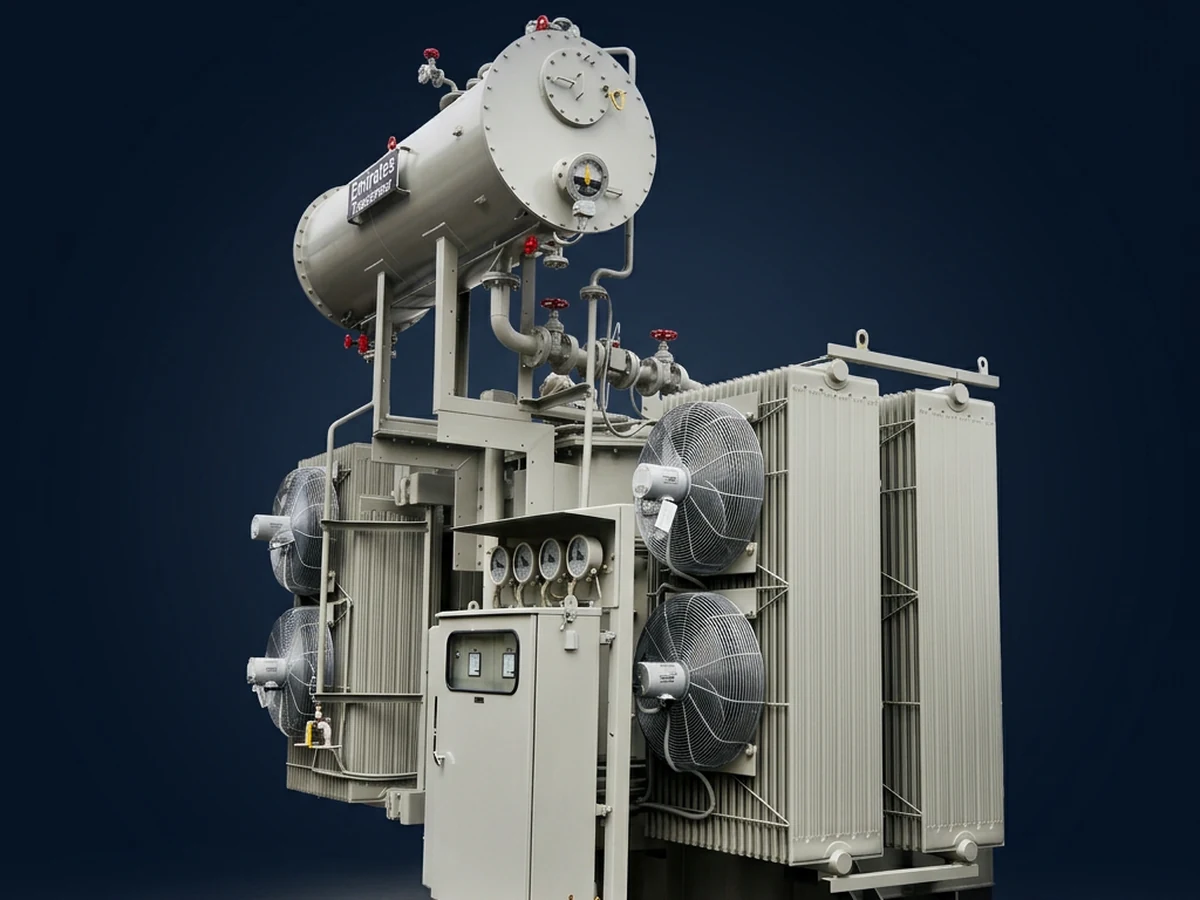

Medium Power Transformers (GSU)
Up to 150 MVA — every power transformer is custom-designed to your system requirements, type-tested to IEC 60076 or ANSI/IEEE C57, and backed by -certified short-circuit withstand capability.
Engineering Features
Short-Circuit Testing
Independently witnessed short-circuit withstand testing for proven reliability under fault conditions.
Technical Data
| Parameter | Range / Value |
|---|---|
| Rated Power | Up to 150 MVA |
| Primary Voltage | Up to 220 kV |
| Secondary Voltage | 6.6 – 36 kV |
| Frequency | 50 / 60 Hz |
| Impedance | 8% – 14% (customizable) |
| Vector Group | As per specification |
| Noise Level | ≤ 70 dB(A) at 1m |
| Total Losses | Per IEC/IEEE guaranteed values |
| Temperature Rise | Top oil ≤ 60K, Winding ≤ 65K |
| Insulation Level | Full BIL / SIL as per class |
Standard range parameters — custom specifications available on request.
Related glossary terms
DEWA Approved
Dubai Electricity & Water Authority vendor
ADDC / AADC
Abu Dhabi Distribution Company approved
SEWA / FEWA
Sharjah & Federal Electricity authorities
ADNOC AVL
ADNOC Approved Vendor List
IEC 60076
International standard for power transformers
ARAMCO 17-SAMSS
Saudi ARAMCO material specification
ISO 50001:2018
Energy Management System (LRQA-certified, UAE plants)
IEC 60076 medium power transformers for GCC primary and bulk-supply substations. Rated 5 MVA to 150 MVA at 33 kV, 66 kV, 132 kV and 220 kV, every unit is short-circuit certified and engineered for the region's 50 °C+ ambient and saline-coastal environment. We supply DEWA, ADWEC, SEC, OEWA, KAHRAMAA and Bahrain EWA primary substations, plus generator step-up units for ADNOC, ARAMCO and renewable IPP projects across the GCC.
Where Medium Power Transformers (GSU) Excel.
GCC Utility Sub-Transmission
IEC 60076 sub-transmission transformers for DEWA, ADDC, SEC, KAHRAMAA and OETC primary substations across the GCC.
ADNOC, ARAMCO & QatarEnergy Sites
Custom-engineered medium-power transformers for ADNOC, Saudi Aramco and QatarEnergy oil-and-gas process facilities.
GCC Solar Step-Up
Grid step-up transformers for Mohammed bin Rashid Solar Park, Sudair, Al Dhafra and other GCC utility-scale solar plants.
Heavy Industry MENA
Industrial substation transformers for EGA aluminium smelters, steel mills, cement plants and water-desalination complexes.
Frequently Asked Questions
Related engineering tools
Specify, size, and validate this transformer with our free engineering calculators — used by EPCs and consultants worldwide.
Related Knowledge
FAQs, glossary terms and sizing steps mapped to this product.
Ready to Specify Medium Power Transformers (GSU)?
Share your technical requirements and our engineering team will provide a detailed proposal with guaranteed performance parameters.
